Machine Picture

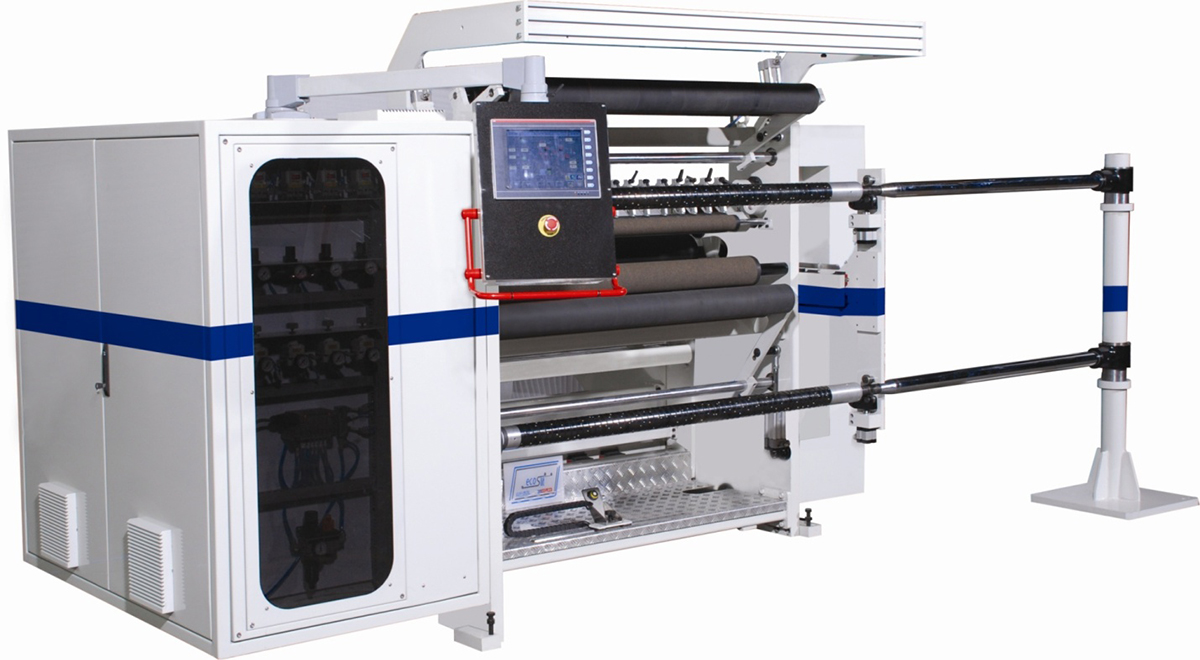

UFlex Duplex Slitter, Model: Eco Slit-450
UFlex Duplex Slitter, Model: Eco Slit-350
Technical Data
UFlex Duplex Slitter, Model: Eco Slit-450
GENERAL SPECIFICATION
- Machine Name: UFlex Duplex Slitter Rewinder
- Model: EcoSlit-450
- Maximum Web width: 1320 mm
- Minimum web width: 500 mm
Unwinder
- Maximum Roll Diameter: 800 mm
- Inside Core Diameter: 76/152 mm
Rewinder
- Maximum Roll Diameter : 550 mm
- Inside Core Diameter : 76 mm
- Minimum slitting width : 50 mm(25 mm Optional)
- Mechanical speed : 450 MPM*
- Typical Material Range : Hard and soft film, papers and laminates (From 10-150 microns)
- Drives: AC vector grade digital drives and AC Asynchronous servo motors for main and rewinders.
UFlex Duplex Slitter, Model: Eco Slit-350
GENERAL SPECIFICATION
- Machine Name: UFlex Duplex Slitter Rewinder
- Model: EcoSlit-350
- Maximum Web width: 1020 mm
- Minimum web width: 500 mm
Unwinder
- Maximum Roll Diameter: 800 mm / 1000 mm (Optional)
- Inside Core Diameter: 76/152 mm
Rewinder
- Maximum Roll Diameter: 550 mm
- Inside Core Diameter: 76 mm
- Minimum slitting width: 50 mm (25mm available as optional)
- Mechanical speed: 350 MPM*
- Typical Material Range: Hard and soft film, papers and laminates (From 10Micron to 150Micron)
- Drives: AC digital drives and AC motors for main and rewinders. Pneumatic brake for unwinder.
Machine Video
Click Here to Download Converting Slitting / Rewinding Machines (ECOSLIT - 450) Product Catalogue.
