HSR 1300

Home Our Businesses Engineering Products Converting Machines Inspection and Rewinding Machines HSR 1300

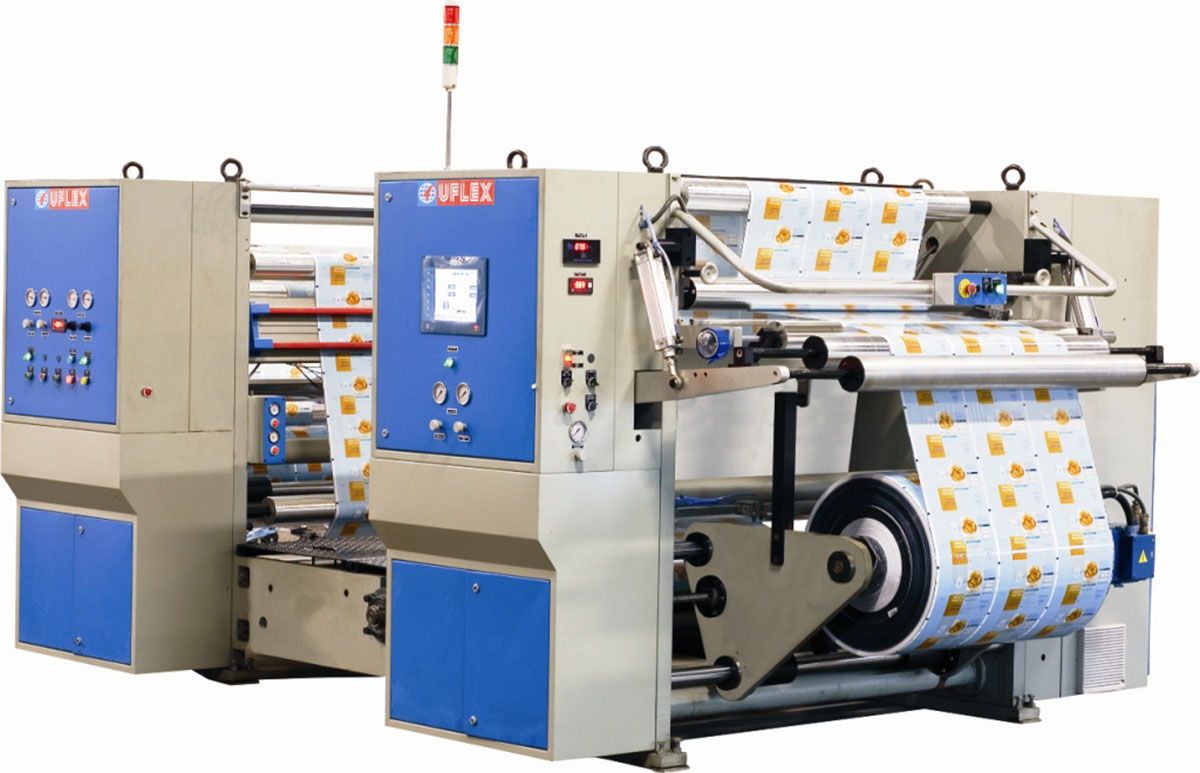

Machine Picture

UFlex Engg Business

Technical Data

GENERAL SPECIFICATION
  • Machine Name: UFlex high Speed Inspection Machine
  • Model Name: HSR 1300
  • Maximum Web Width: 1300 mm
  • Mechanical Speed: 450 Mtr. / min. (Depends upon type, Parent roll condition, Tension range, operator skill etc.)
  • Maximum Design Speed: 450 mtr/ min
Unwinder
  • Maximum Roll Diameter: 1000 mm
  • Inside Core Diameter: 76 /152 mm
  • Direction Unwinding: Two (2) Direction Unwinding
Rewinder
  • Maximum Roll Diameter: 1000 mm
  • Inside Core Diameter: 76/152 mm
  • Direction Rewinding: Two (2) Direction Rewinding
Tension Range
  • Unwinder & Rewinder: 4 – 35 kg.(Adjustable Taper Tension 0% to 60% of set value for rewinding)
  • Web Guiding: Ultrasonic Edge guiding with A.C. motor actuator at Unwinder and Rewinder for self-shaft chucking arrangement and DC motor actuator for shafted design

Click Here to Download Converting Inspection and Rewinding Machines (HSR 1300) Product Catalogue.
