Solvent-base - Standard

Home Our Businesses Engineering Products Converting Machines Lamination Machines Solvent-base - Standard

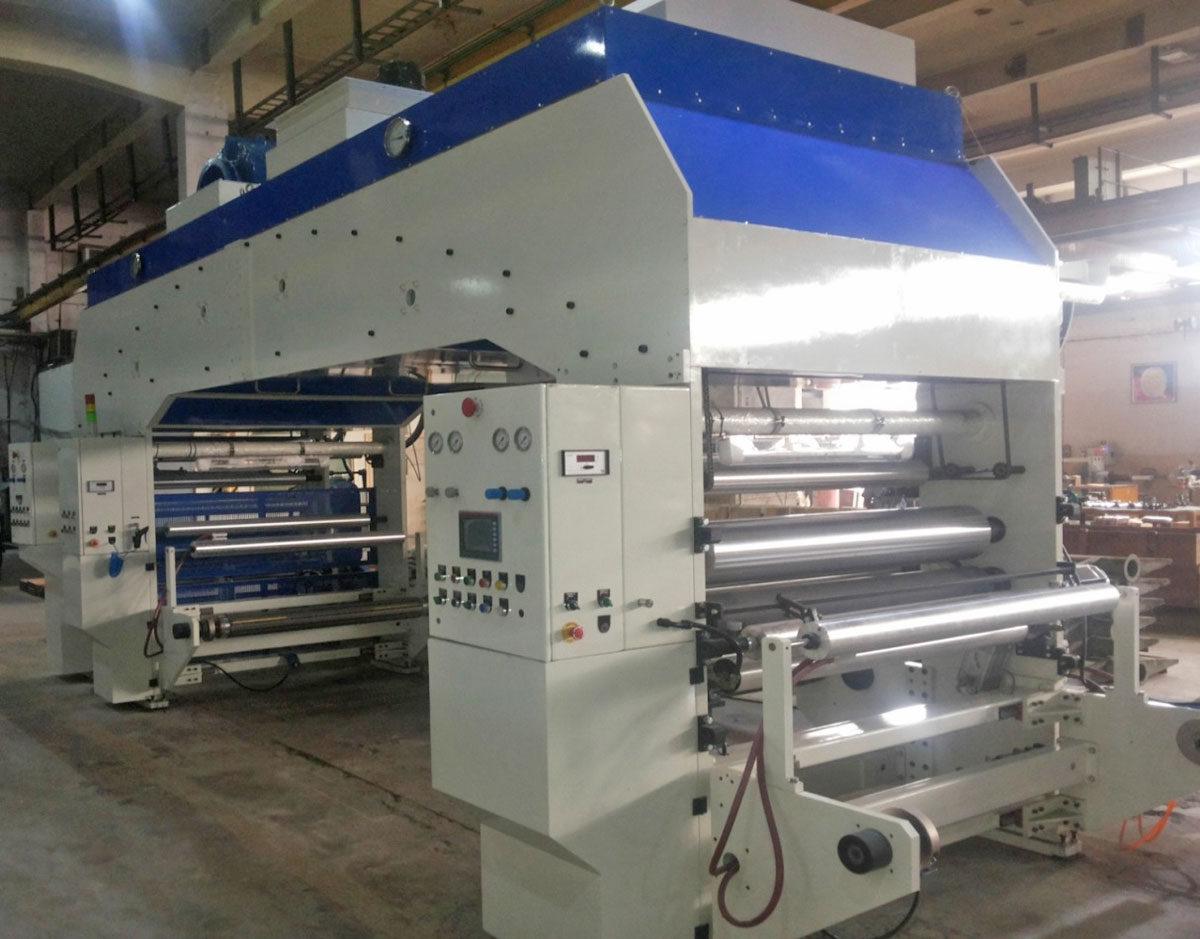

Machine Picture

UFlex Engg Business

Technical Data

GENERAL SPECIFICATION
  • Machine Name: UFlex Dry Lamination
  • Model: Solvent-base - Standard
  • Maximum Web width: 1320 mm
  • Minimum Web width: 600 mm
  • Mechanical speed: 200 mpm
Unwinder A
  • Maximum Roll Diameter: 800 mm
  • Inside Core Diameter: 76/152 mm
  • Direction Unwinding: Two (2) Direction Unwinding
Unwinder B
  • Maximum roll diameter: 800 mm
  • Inside core diameter: 76/152 mm
  • Direction Unwinding: Two (2) Direction Unwinding
Rewinder
  • Maximum roll diameter: 800 mm
  • Inside core diameter: 152 mm
  • Direction Rewinding: Two (2) Direction Rewinding
Tension range
  • Unwinder A: 4 - 20 kg
  • Unwinder B: 4 - 20 kg
  • Rewinder: 4 - 25 kg
  • Coater: 4 - 20 kg
