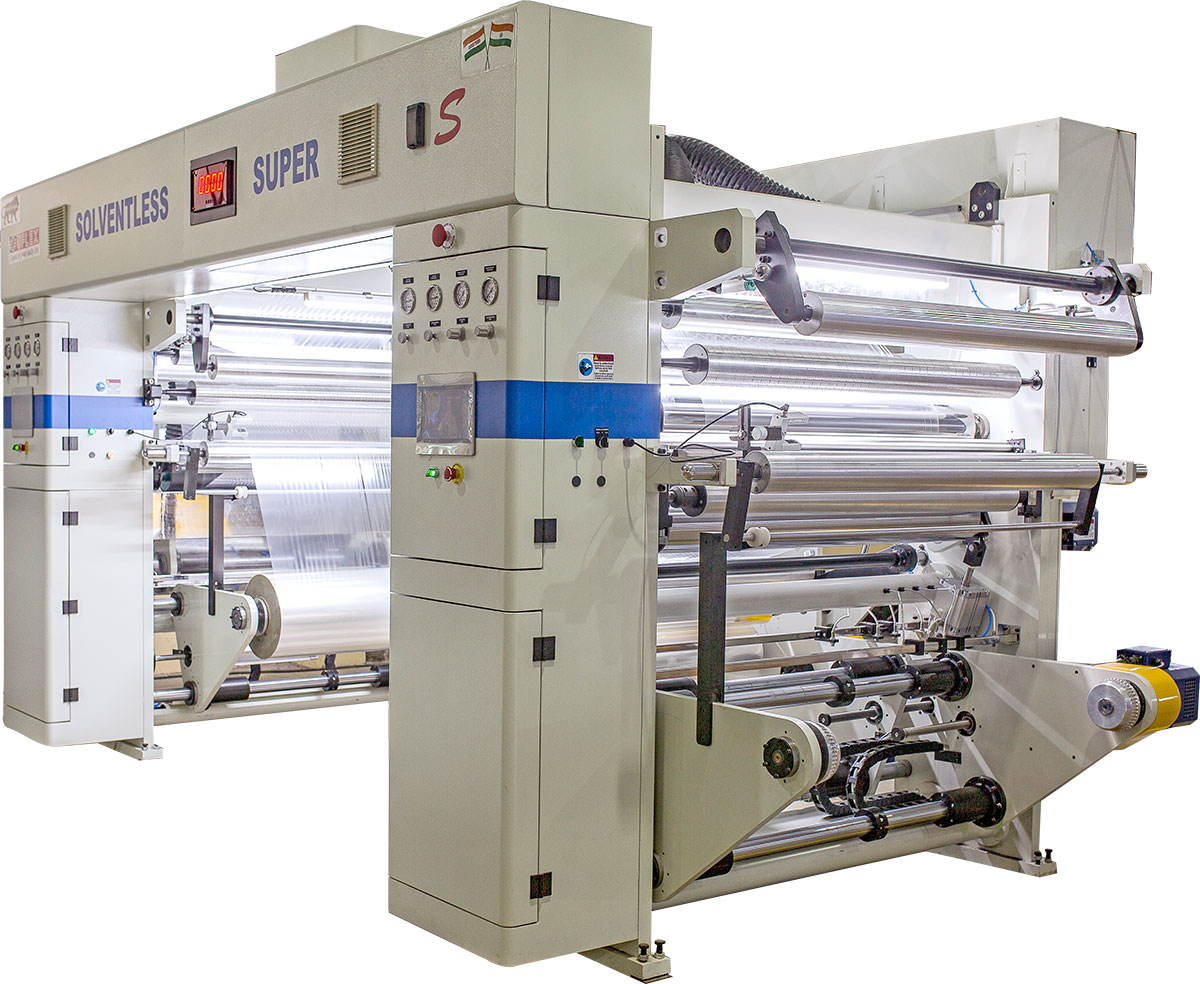

Machine Picture
Technical Data
GENERAL SPECIFICATION
- Machine Name: UFlex Solventless Laminator Machine
- Model: Super S - 1000
- Machine Colour: OFF White RAL 9OO2 & Blue RAL 9005
- Maximum Web Width: 1000mm
- Minimum Web Width: 600 mm
- Mechanical Speed: 450 Mtr. / min
- Lamination Nip: Three Roller
- Chill Roller: After Lamination
Unwinder A
- Maximum Roll Diameter: 800 mm
- Inside Core Diameter: 76 mm/152 mm
- Direction Unwinding: Two (2) Dual Direction Unwinding
- Tension Control: Through Dancer
Unwinder B
- Maximum Roll Diameter: 800 mm
- Inside Core Diameter: 76 mm/152 mm
- Direction Unwinding: Two (2) Dual Direction Unwinding
- Tension Control: Through Dancer
Rewinder
- Maximum Roll Diameter: 800 mm
- Inside Core Diameter: 152 mm
- Direction Rewinding: Two (2) Dual Direction Rewinding
- Tension Control: Through Load Cell
Machine Video
Click Here to Download Converting Rotogravure Printing Machines (Solvent-less Lamination Machines - Super S) Product Catalogue.
